Super Bright 5054 Led Linear Sign Modules 3leds 12V Waterproof For Outdoor Signage Advertisement Lamp

Super bright 5054 led linear sign modules 3leds 12V waterproof for outdoor signage advertisement lamp


Specifications:

Items:5054 LED Sign module      Size:75*12*05 mm

Voltage:DC12V                           Power:0.8W/pc

Currency:20mA                          IP Rate:IP67

Warranty:3 Years                      Package:20pcs/roll

Emitting Color:White

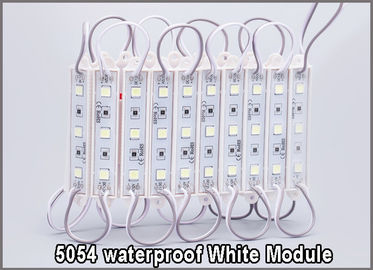

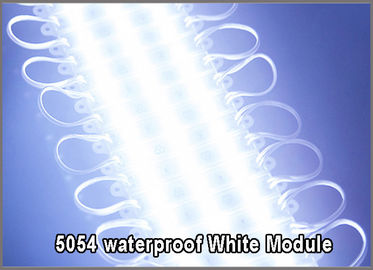

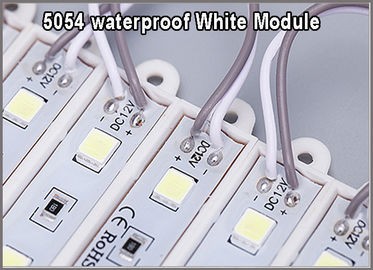

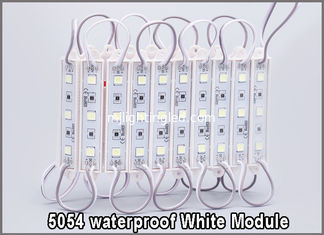

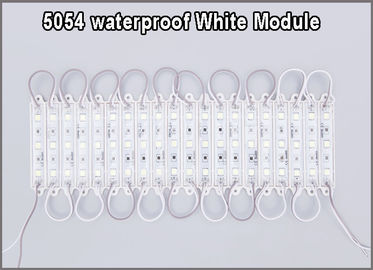

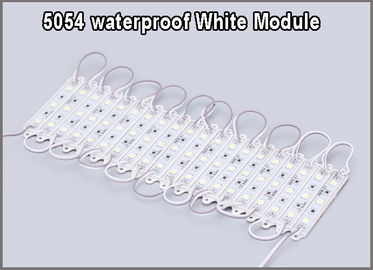

Pictures:



Feature:

1.The led module is made from Taiwan chip. Come out with high lumen, good color purity.

2.Energy saving, environmental friendly, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.



Installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.


2.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
