Product Details:
Payment & Shipping Terms:
|
| Color: | RED | LED: | 5054SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.6W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Application: | Led Backlight | Product: | 5054SMD Led Modules |
Red 5054SMD led modules 3leds 5054 module light for led backlight signs
Specifications:
Items:5054smd 3 led module Size:75*12*05 mm
Voltage:DC12V Power:0.8W/pc
Currency:20mA IP Rate:IP67
Warranty:3 Years Package:20pcs/roll
Emitting Color:White

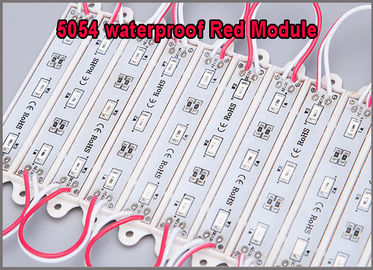

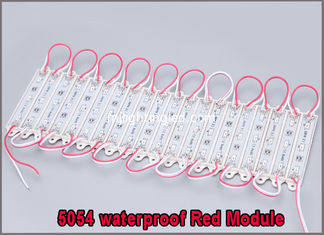

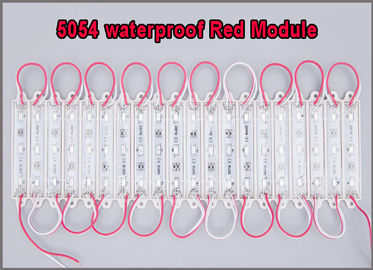

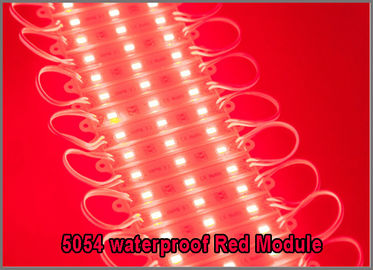

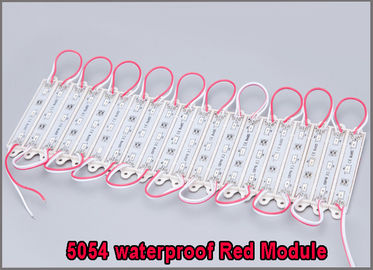

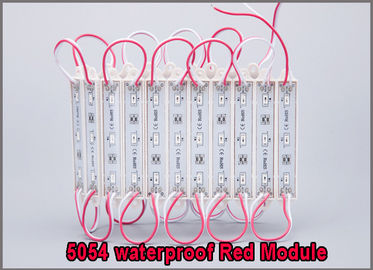

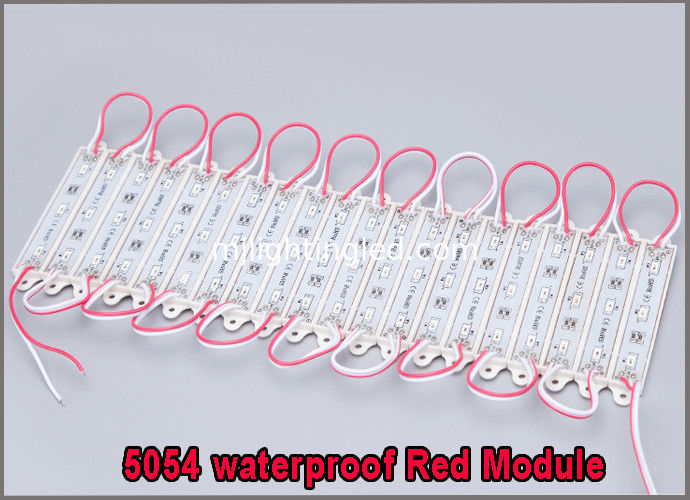

Pictures:
Installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

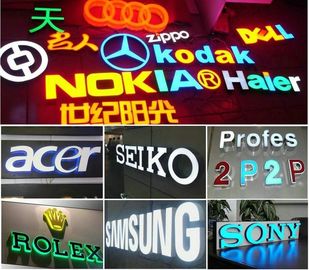

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
