Product Details:
Payment & Shipping Terms:
|
| Product: | 5730 Smd Led Module | Type: | Led Module 3leds |
|---|---|---|---|
| Voltage: | DC12V | Led: | 5730 |
| Waterproof: | IP67 | Power: | 0.8W |
| Size: | 75*12*05mm | Color: | Red |
| Application: | Led Channel Letter | Usage: | Outdoor Decoration |
5730 smd led module 3leds DC12V Red waterproof IP67 for led channel letter outdoor decoration warranty 2 years
Specifications:
Product: 5730 SMD LED Module
Size:75*12*5mm
Voltage:DC12V
Power:0.8W/pc
Working Currency:20mA
Bean Angle:160dg
Color:Red
Application:kinds of Led Channel Letter

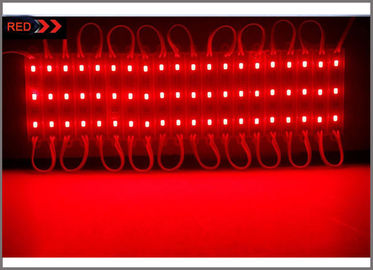

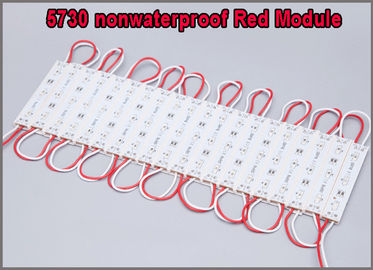

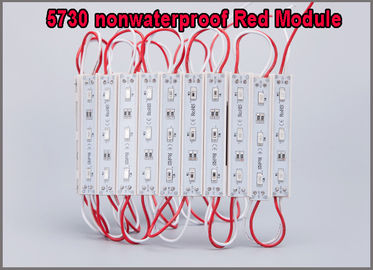

Pictures:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
Package:

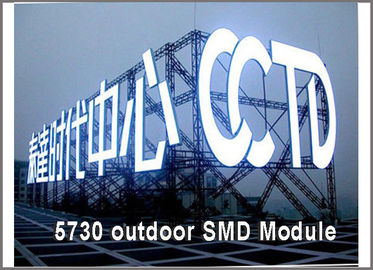

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Notice:
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
If you have more questions, Pls contact with me:
