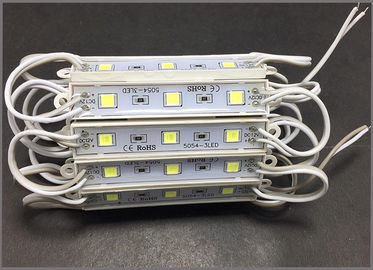

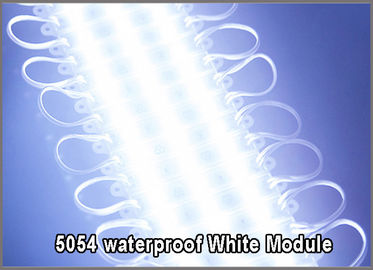

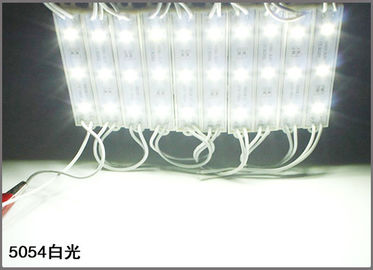

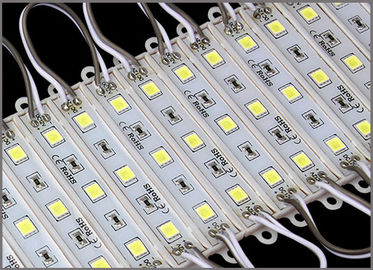

5054 Smd 3 Led Module For Signage White Color High Quality Modules Advertising Letters

                              More products Hot seller




 5054 Smd 3 Led Module For Signage White Color High Quality Modules Advertising Letters

Specifications:

Items:5054 smd 3 led        Size:75*12*05 mm

Voltage:DC12V                Power:0.8W/pc

Currency:20mA                IP Rate:IP67

Warranty:3 Years             Package:20pcs/roll

Emitting Color:White

Pictures:



Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Application pictures:

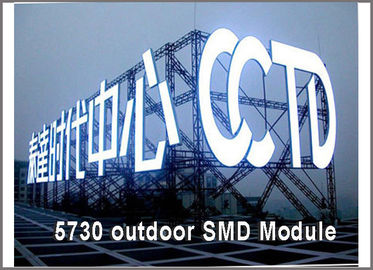

LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.




Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


• 1year warranty, life-long maintenance. Answer will be replied in 24hours.

• Technican will solve the problem on site.

• Give product upgrade solution to improve plane.

• We will give phone call interviews every month during warranty period

Notice:
1.Pls confirm the dirver is DC5V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
