Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | LED: | 5730SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Products: | 5730 Modules Light | Application: | Led Channel Letters |
LED advertising module light 5730 SMD 3 LED modules 12V LED lamp
Specifications:
Specifications:
| Items | 5730 SMD 3LED Module | Size | 75*12*5 |
| Voltage | DC12V | Power | 0.8W/pc |
| Currency | 20mA | Warranty | 3years |
| Color | Blue | Application | LED advertising module light |

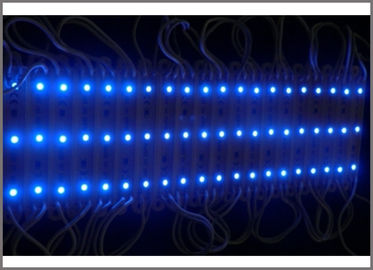

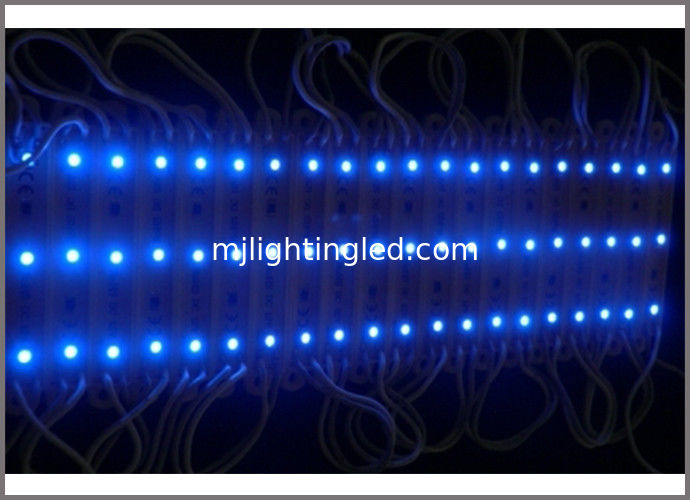

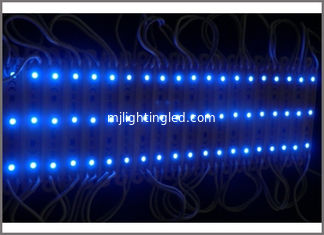

Pictures:
Feature:
1.The led module is made from Taiwan chip. Come out with high lumen, good color purity.
2.Energy saving, environmental friendly, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

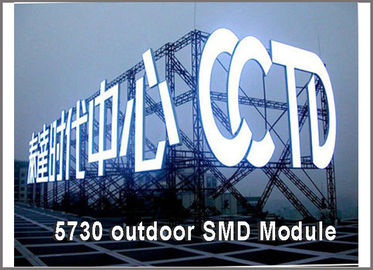

Application pictures:
LED channel letters,Name board, Wire bar,wall,building and stage decoration.
LED advertising signs.
Shop banners
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
